Description

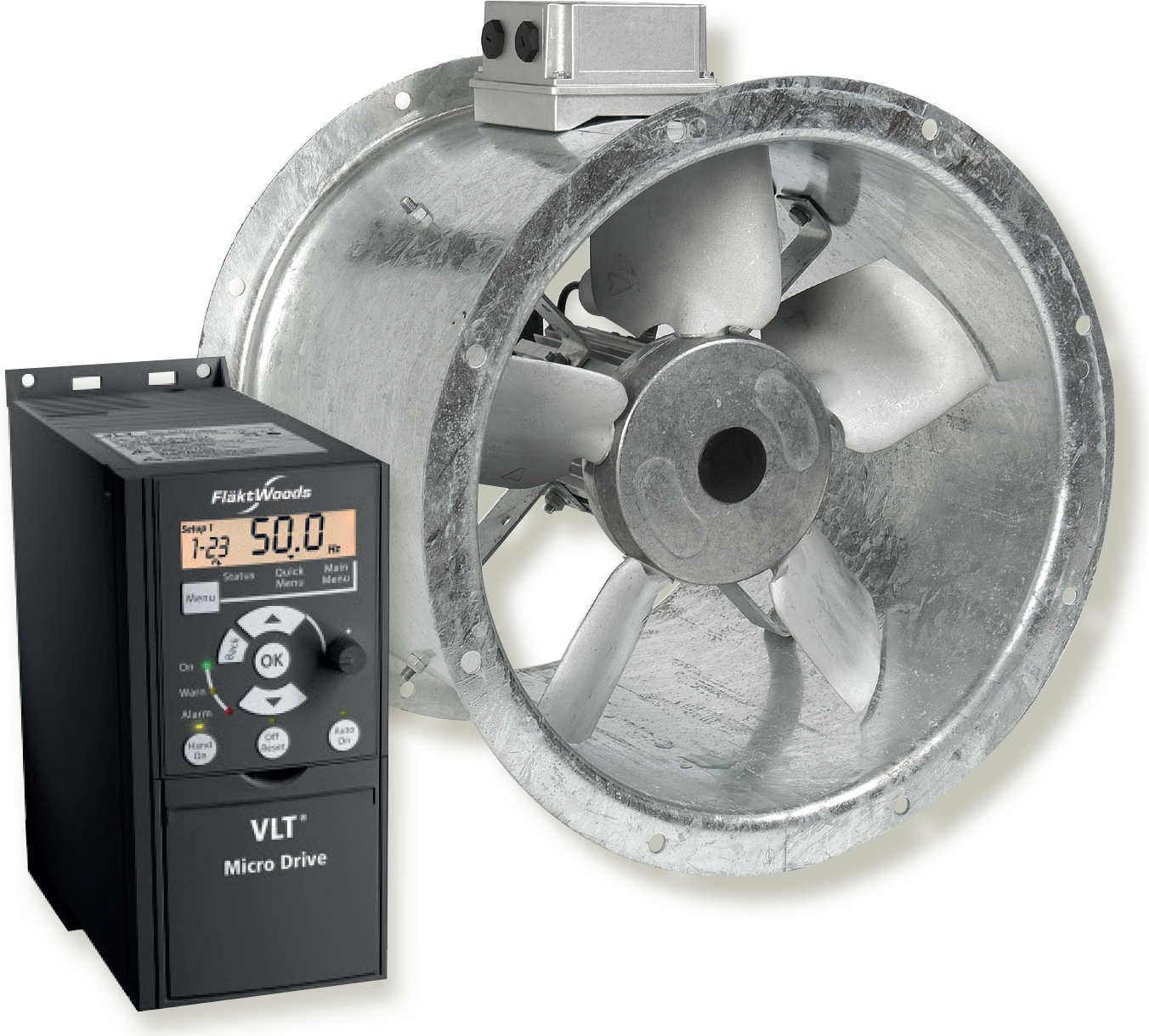

The MaXfan Compac reinforces the high quality products that Fläkt Woods has provided over the years. The MaXfan Compac fan offers you; High Performance, Full Inverter Control, Operating temperature up to 80°C*, Easy Installation & Mainetance, Comparable noise levels, Compact robust lightweight design, DW172 Compliance and is available in stock for next day delivery.
FEATURES
• 400 – 630 mm diameter
• Volumes up to 4.9m3/s
• Static Pressures up to 900 Pa (Non-stalling characteristic)
• Fans tested to ISO5801 and BS848
• High efficiency energy saving IE2 motor
• Low breakout noise levels
• Motor protection and terminal block IP55 (DW172 & Defra Compliant)
• Ambient temperatures up to 80°C (Dependant on size)
• Overheat protection as standard
• Compact robust light weight construction
• Galvanised casing for high corosion resistance
• Full inverter control and flexibility
ELECTRICAL SUPPLY
230v/50Hz/1 Ph (3 Ph Motor) – L Type
TEMPERATURE RANGE
Suitable for temperatures up to 80°C*
IMPELLERS
A unique high efficiency aerofoil section blade with a smoothed hub and clamp plate for adjustable pitch angle availability. The Fläkt Woods impellers are all high pressure die cast to offer thin aerofoil sections for low generation of noise. Every cast aluminium component is X-ray examined using Real Time Radiography inspection prior to assembly. The maximum pitch angles shown allow for speed control by frequency inverter.
MOTORS
All motors are totally enclosed air stream rated class F insulation. Constructed from aluminium or cast iron as standard with special pad mounted fixings. Although this product incorporates a three-phase electric motor, by using a matched inverter solution it is suitable for use with a single phase electrical supply on site. In addition, using a frequency inverter allows the speed to be turned down to 20% of maximum speed. Suitable for horizontal or vertical shaft operation. Supplied IP55, with removable drain plugs.
Sealed for life bearings lubricated with wide temperature range grease. The complete range of motors are fitted with Thermistor OHP as standard. Motors are IE2 efficiency class as standard.
CASINGS
The MaXfan Compac is available with a galvanised casing, complete with an externally mounted pre-wired electrical terminal box. Casings are spun from sheet steel with integral pre-drilled and radiused inlet flanges. The galvanised finish gives a high resistance to corrosion and is ideal for external as well as internal use.
