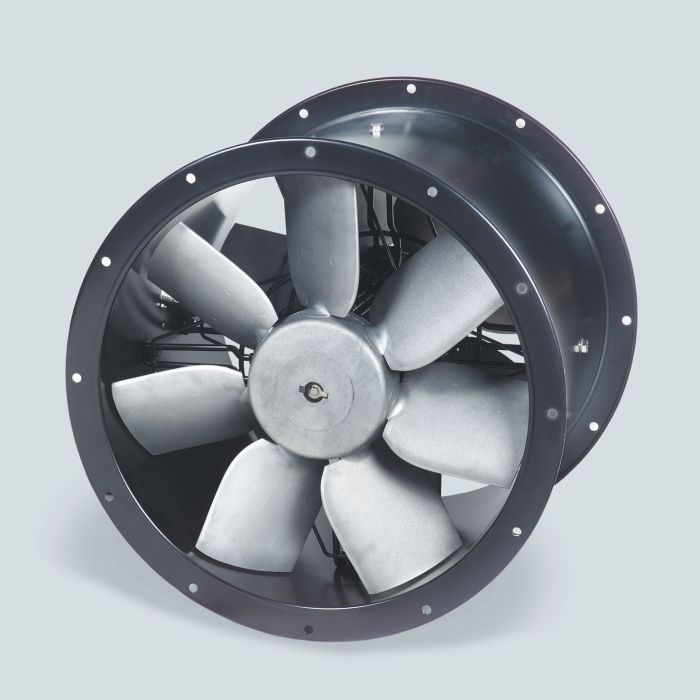

S&P Contrafoil Turbo Prop Twin Axial Fan 450mm
Canopy Uk was built on experience, honesty, great value and giving customer service that is second to none.
With a strong team Canopy Uk is now one of the leading commercial kitchen extraction and kitchen ventilation companies in the UK.
Please call our sales team for help and support on 01733 700468
All Prices exclude VAT and Delivery
Range of cylindrical cased axial fans fitted with aluminum impellers and manufactured from high grade rolled galvanized steel and protected against corrosion by cataforesis primer and black polyester paint finish.
Fitted with 2 contra-rotating complementary impellers manufactured from die-cast aluminum. All models are supplied with pre-wired wiring junction box including cable gland PG-11 located on the outside of the fan casing for easy wiring access.
Contra-rotating system with two complementary impellers allowing the duplication of the pressure with the same air volume Impellers are dynamically balanced, according to ISO 1940 standard, giving vibration free operation.
1420(r.p.m) 1316(W) 67(dB(A)) 7430(m3/h) 42(Kg)
Single phase 230V-50Hz. (Capacitor located inside the wiring terminal box).
Fan comes with a 1 year manufacturer's warranty.
Working temperatures from -40ºC up to 70ºC.
All the motors are IP65, Class F insulation (1), equipped with thermal protection.
Single phase motors are variable voltage (for TCBBX2/4-450, only if the ambient temperature is up to 40 º C).
Available with single or three phase 4 poles motors.
